Industrial PC
CELVAA’s next generation Industrial PC, Thin Clients series are many. They offer a wide range of options: from distribution HMI solutions with client-server architecture, to machine level control and monitoring, to heavy-duty control systems. Engineered to meet increasingly complex processes, demanding data requirements and control tasks of machines and automation systems, they provide simple programming and operation. Using flexible and standardized interfaces for embedded computing allows for easy integration for almost any application, machine or industry.
Benefits
In many different industries such as medical, food and pharmaceutical, industrial computers are vital to help with everyday tasks that your standard computer just would not be able to do. Below, we are taking you through the many great benefits of using an industrial computer and why your business needs one.
● Intel Processor
● Intel HD Graphics
● 2 x HDMI, 6 x RS-232
● 4 x USB 3.0, 2 x USB 2.0, 1 x SATA 3
● 1 x Mini-PCIe, 1 x mSATA
● 2 x Intel I211-AT Gigabit LAN

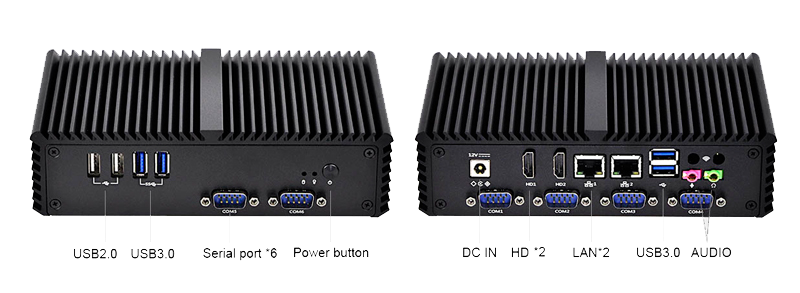

Front Port
● 1 x Power Button
● IP65 industrial grade
● 1 x Power LED, 1 x HDD LED
● 2 x USB 3.0, 2 x USB 2.0
● 2 x RS-232 Serial port (COM5, COM6)
Back Port
● 1 x Power LED, 1 x HDD LED
● 2 x HDMI, 1 x VGA(Optional)
● 2 x RJ-45 Port for Gigabit LAN
● 2 x Audio ( Mic-in &Line-out)
● 2 x USB 3.0
● 4 x RS-232 Serial ports(COM1, COM2, COM3, COM4)
Expansion
● 1 x Full Length Mini-PCIe for SSD
● 1 x Mini-PCIe for Option (Full-length for 3G, or Halflength for Wi-Fi Module by default)
● 1 x SIM Card Slot
● 1 x Automatically Boot Jumper
● 1 x 2.0 Pitch Header for GPIO
● 1 x 2.0 Pitch Header for VGA
● 1 x DC-in Header
● *COM2 can be set up as RS-232/RS-485 (Factory Setting)
● *COM3 can be set up as VGA (Factory Setting)
| Cooling Mode: | Fanless Design |
|---|---|
| CPU | Intel |
| CPU TDP | 15W |
| Memory | 1 x DDR3L SO-DIMM Socket (Up to 8G,1333/1600MHz) |
| Storage | 1 x 2.5-inch HDD/SSD, 1 x Mini-PCIe for mSATA SSD |
| Chipset | By CPU |
| Graphics | Intel® HD Graphics |
| LAN Chipset | 2 x Intel I211-AT Gigabit LAN |
| Audio | Realtek ALC662 HD Audio |
| Watch Dog | Yes |
| OS Support | Windows 7, Windows 8, Windows 10, Linux |
| Material | Aluminum |

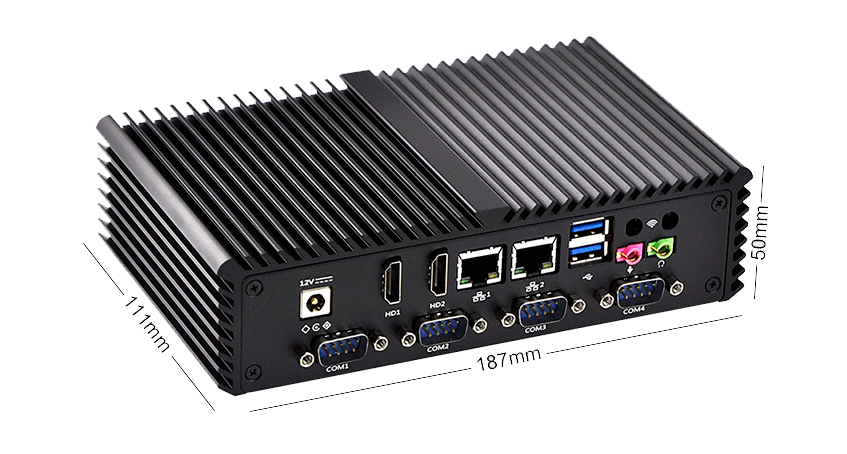

| Dimension | 187 x 111 x 50mm |
| Weight | 1.1kg |
| Mounting | VESA Mounting Bracket |
| Package Dimension | 261 x 218 x 75mm |
| Kensington Lock | Support |
| Power Adapter | 12V 3A |
| DC Jack | 5.5mm x 2.5mm |
| Power Cable | EU/US/AU/EN etc. |
| Operating Temp | 0°C~50°C |
| Non-Operating Temp | -20°C~80°C |
| Humidity | 10%~90% |
